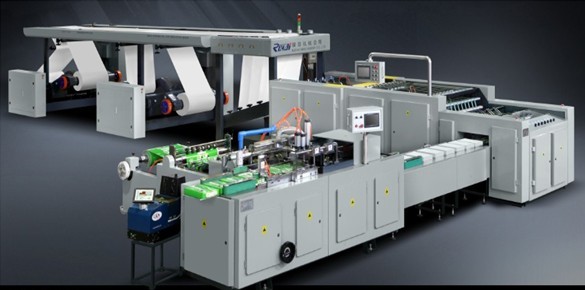

Name: RHDP-A4 cutting machine with packing in line Model:
|
 |
suitable for cutting roll paper materials,such as high quality copy paper,high quality writing paper,high quality offset paper into A3,A4 size.
|
Gross width |
850mm |
|
Net width |
840mm |
|
Number of cutting rolls |
4 rolls |
|
Diameter of paper roll |
400-1200mm |
|
Diameter of paper core |
3"(76.2mm)-6"(152.4mm) |
|
Thickness of paper |
60-100g/㎡ |
|
Length of paper cutting |
A4(297mm) |
|
Ream paper Count |
0-500pc |
|
Ream height |
65mm(Max) |
|
160m/min |
|
|
Designing Times of cutting |
538/min |
|
Designing Cycle time of ream exhausted |
4.3/min |
|
Real speed of paper cutting |
130m/min |
|
Real Times of cutting |
437/min |
|
Real Cycle time of ream exhausted |
3.5/min(14 reams/min) |
|
Max Load of paper cutting |
400g/㎡(4 rolls ×100g/㎡ per roll) |
|
Paper cutting accuracy |
±0.2mm(Permissible error) |
|
Paper cutting condition |
1.Speed not change 2.Paper reel with no breakage 3. Qualified roll paper. |
|
Transmission |
AC Frequency conversion,stepless speed regulating |
|
Main power source |
3phase/380v/50Hz |
|
Adjustable voltage |
220V AC/22V DC |
|
Installed capacity |
35KW |
|
Air consumption |
300NL/min |
|
Pneumatic pressure |
6bar |
|
Overall dimension(cutting machine) |
15000×2750×2100mm |
|
Weight(cutting machine) |
12 T |
|
Overall dimension(packing machine) |
6000×3400×1600mm |
|
Weight(packing machine) |
1.8 T |
