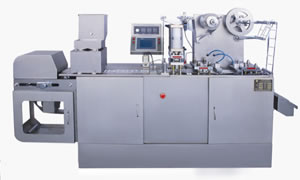

DPH-200 Model blister packing machine
Product Description:
The blister packaging machine is suitable to pack special products such as electronic tools, with a deeper blister packaging, it has automatic pressing and printing batch number and aluminum batch alloy double heating, it has been exported to USA, Japan, India, Australia, Russia and many other countries where this machine is popular.
Our plate type blister packaging machine has some new functions, distance can be adjusted between parts when sealing and stamping, practical for medicine packaging. It prints automatically the batch number and the cursor alignment finishes the traction length automatically as well.
The blister packaging machine has cycloidal needle wheel to reduce speed making noise lower and extending its service life. It's easy to change mould and its manipulator length can be adjusted to operate easily and reliably.
Technical Data of Blister Packaging MachinePVC sheet Thickness | 0.2-0.4 mm |
PVC sheet Width | 100-150 mm |
PTP aluminum film Thickness | 0.02-0.04 mm |
PTP aluminum film Width | 100-150 mm |
Cutting frequency | 15-40 times/min |
Step distance | 45-160 mm |
Max molding depth | 30 mm |
Power | 4.8 Kw |
Power supply | 380 V 50 Hz |
Overall dimensions L x W x H (mm) | 2250 x 630 x 1580 |
Weight (approx) | 1050 Kg |
