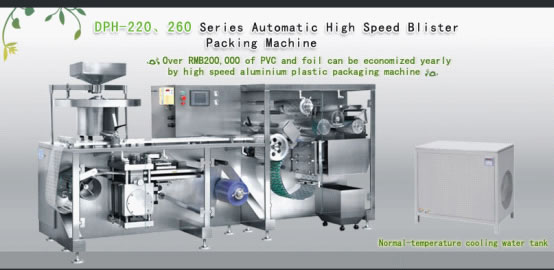

DPH-220 Model blister packing machine
Product Description:
The blister packing machine is an aluminium-plastic blister packing machine for capsules, tablets, milk packages, candies, electronic elements and similar applications with sealing packing in al-PVC and paper-PVC.
The blister packing machine performance is precise and accurate with the latest roller and plate blister type developed by Ruihai Machinery. This machine is used in pharmaceutical, food, medical appliance and electronic industry around the world.
Technical Data of DPH-220 Blister Packing MachineModel | DPH-220AS | DPH-260 |
PVC Non-toxic PVC (mm ) | (Thickness) 0.25 x (Width) ≤220 | (Thickness) 0.25 x (Width)(180-260 ) |
PTP Aluminium foil PTP PVC & PTP (mm ) | (Thickness) 0.02 x (Width) ≤220 OD of Reel < φ400 mm Diam of Reel Core: φ70 ~ 80 | (Thickness) 0.02 x (Width)(180-260 ) OD of Reel < φ400 Diam of Reel Core: φ70 ~ 80 |
Cutting speed (3 Gears) | 40~ 120 (times/min) | 40~ 120 (times/min) |
Packing Efficiency | Capsules: 11-17 ten thousand/h Tablets: 15-30 ten thousand/h | (Capsules) : 16-26 ten thousand/h (Tablets): ten thousand/h |
Overall Dimensions L x W x H (mm) | 3140 x 940 x 1600 | 3140 x 940 x 1600 |
Weight (approx) | 4000 Kg | 4000 Kg |
Installed Power | 12.5 Kw 380V 50Hz/220 V 60 Hz | 12.5 Kw 380V 50 Hz/220 V 60 Hz |
