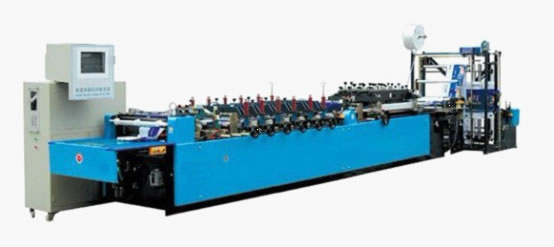

Name: WFBD Model Three side sealing bag making machine Model:
|
 |
The plastic food bag making machine is suitable to pack food with BOPP, COPP, PET, plastic, paper plastic, aluminium and other materials. It has feeding traction driven by AC servomotor with control, tension is automatically controlled by swimming roller, magnetic powder brake and displacement sensor.
When the set program of the plastic food bag making machine is above 400 mm, it automatically changes into multiple conveyances. It has upper and lower sealing press driven by AC servomotor as well and it has automatic count which can be pre-set. It has multiple photoelectric controls.
The plastic food bag making machine has CRT displaying, it has continuous or interval punching and its time can be pre-set according to specific needs. Distance between colour scales can be measured photoelectrically, it can adopt multiple conveyances, twice to six times, it can also be set for printing or non-printing.
Technical Data of Plastic Food Bag Making Machine| Model | WFBD-400 / 600 / |
| Production Capacity | 160 pieces/min |
| Maximum material roll width | 300 mm / 500 / |
| Maximum roll diameter | Ф≤600 mm |
| Roll folding max width | 1250 mm |
| Roll folding max diameter | 600 mm |
| Inner core diameter | Ф3 " |
| Sealing speed | 150 m /min |
| Temperature | 0-300 ℃ (According to different material) |
| Max bag width | 600 mm |
| Bagging length | 50-2400 mm |
| Gas pressure | 0.6MPa (6kgf/cm2) |
| Cooling water Approx | 15L/min |
| Dimension L×W×H (mm) | 9000×2000×1870 |
| Weight (approx) | 5000 Kg |
| Feeding driving AC motor | 1.0 Kw × 2-2.0 Kw |
| Upper and lower driving | AC motor, 3.0 Kw × 1-3.0 Kw |
| Warping traction motor | 0.55 Kw × 1-0.55 Kw |
| Side heat seal device | 4.8 Kw × 5-24.0 Kw |
| Lateral heat seal device | 4.0 Kw × 3-12.0 Kw |
| Control system and others | 3 Kw |
| Total (approx) | 45 Kw |
The plastic food bag making machine has alarms when is lacking of photoelectricity or temperature, also, warping and servomotor alarm and auto-switch off. It has the warp beam horizontally, with V fold support and pneumatically lock. Its operation speed is set as maximum 160 pieces per minute, but this can be different according with material and bag size.
