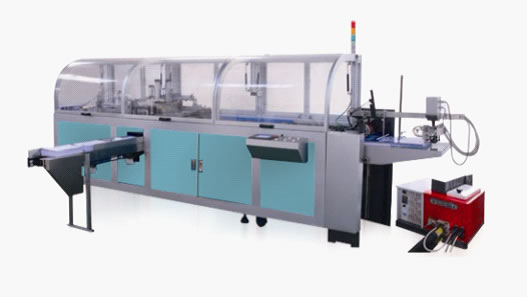

Name: RHAP-297 Model A4 packing machine Model:
|
 |
The A4 copy paper packing machine is ideal to pack and wrapped 500 sheets of global general official A4 format anti-static duplicating paper in one ream. This equipment is an exclusive design from Ruihai Machinery, on basis of producing cellophane over wrapping machines with several years experience, which working principle is driven by a series of mechanical structure and connecting pneumatic device, performing simultaneously different actions such as automatic feeding, falling paper, rectifying deviations, cutting paper, gluing and wrapping and some other functions during the process of package.
The A4 copy paper packing machine is set with cams, connecting rods and other accessories to achieve accurate packaging, it has low noise when operating and it applies frequency conversion with multi-function digital non-ploy speed with Siemens PLC program controlled and touchscreen display. The A4 copy paper packing machine has a feeding device system to input paper precisely with connecting gluer and spray adjustable.
Technical Data of A4 Copy Paper Packing Machine| Model | RHAP-297 |
| Production capacity | 12-18 (packs/min) |
| A4 copy paper size (standard) | 297 mm x 210 mm (500 sheets) |
| Voltage | 380 v 50 Hz, 3 phases |
| Power | 5 Kw |
| Compressed air | 0.6~0.7 MPa |
| Overall dimensions L x W x H (mm) | 4600 x 1300 x 1450 without safety cover 4600 x 1300 x 1680 with safety cover |
| Weight (approx) | 1500 Kg |
The A4 copy paper packing machine integrates optic, mechanic, electrical and pneumatic pieces for the highest quality and accurate performance for this type of machine. It has practical structure, advanced technique, easy operation, suitable to pack A4 paper instead of hand packing, reducing working intensity and improving the effectiveness.
