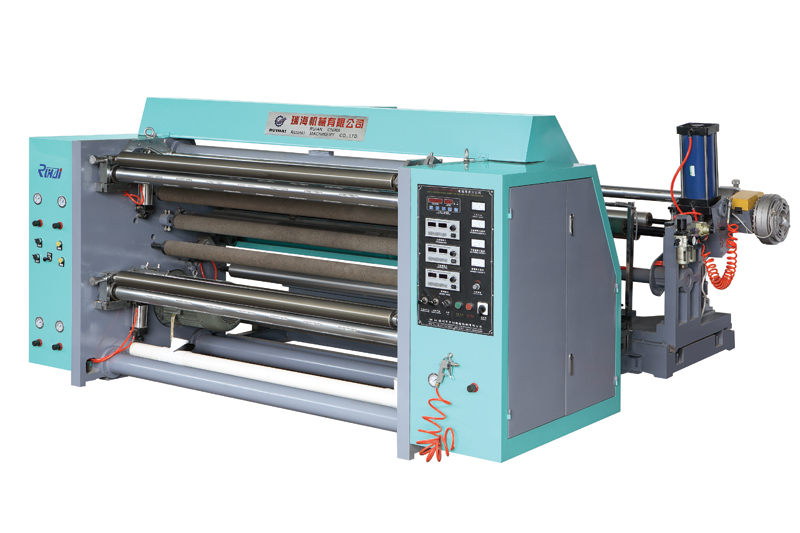

The OPP perforation film slitting rewinding machine is used to slit and rewind various large rolling materials such as paper with weight between 20g/㎡and 300g/㎡, cellophane or bill paper, double-face or single face adhesive tape, weave material, nonwoven fabric, OPP, PET, FILM, AL, PVC, copper foil and others. The slitting rewinding machine also comes with a perforator using hot needles to punch holes.

The OPP perforation film slitting rewinding machine uses automatic taper tension and central surface reeling. It has frequency converter timing to keep speedup and stable operation, also with automatic metering and alarm. The OPP perforation film slitting rewinding machine adopts A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

The OPP perforation film slitting rewinding machine has photoelectric automatic error adjustment system for unwinding, atypical materials will be easy to slit. The OPP perforation film slitting rewinding machine is set with automatic waste film blowing device by circle blade and automatic input material.

Technical Data of OPP Perforation Film Slitting Rewinding Machine

Model	WZFQ-1100 CP	WZFQ-1300 CP	WZFQ-1600 CP
Max unwinding width	1100 mm	1300 mm	1600 mm
Max unwinding diameter	￠ 1400 mm (700 mm option)	￠ 1400 mm	￠ 1400 mm
Min slitting width	30 mm	30 mm	30 mm
Max rewinding diameter	￠ 5 00 mm	￠ 5 00 mm	￠ 5 00 mm
Speed	10-160 m/min	10-160 m/min	10-160 m/min
Precision	± 0.2 mm	± 0.2 mm	± 0.2 mm
Total power	12 Kw	12.8 Kw	16 Kw
Suitable power supply	380 v/50 Hz	380 v/50 Hz	380 v/50 Hz
Weight (approx)	3000 Kg	3200 Kg	3800 Kg
Overall dimension L × W × H (mm)	3000 × 2200 × 1600	3000 × 2400 × 1600	3000 × 2700 × 1600
