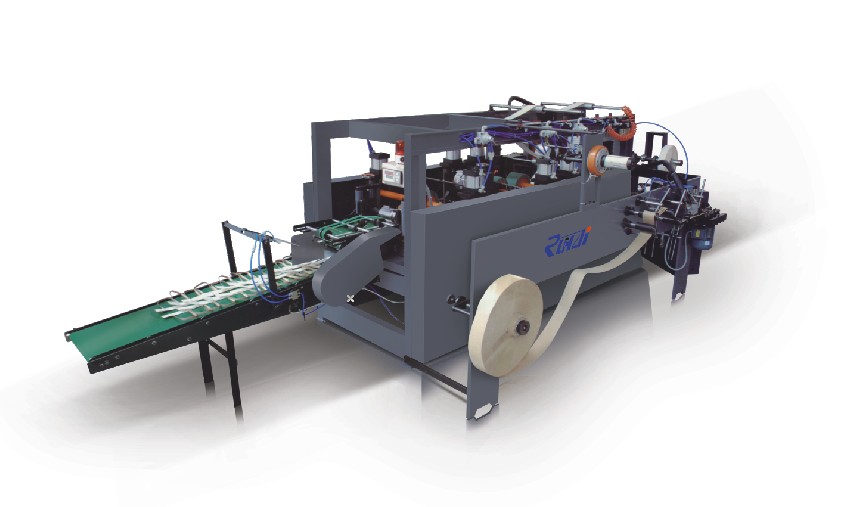

WFD-100-1 Twist-rope&Flat-belt Handle Machine
 |
Name: WFD-100-1 Twist-rope&Flat-belt Handle Machine Model:
|
 |
Product Description:
This is a high-speed machine for producing paper handles, it pastes twist paper ropes and paper together for handles, then cut off them in separate automatically. Besides, it has the functions of handles counting, handles putting in order and handles collecting. It is an ideal supporting machine of paper Handbag Making Machine.
Technical data
|
Model |
WFD100-1 |
|
Paper weight For hadle |
100-120g/m |
|
Paper weight For belt |
60-80g/m |
|
Diameter of paper rope |
3-5MM |
|
Diameter of paper belt |
10-12MM |
|
Width of two paper roll |
70-100MM |
|
Width of paper board |
95MM |
|
The overall length of the paper rope |
330-370MM or380-420MM |
|
Power Consumption |
6KW |
|
Speed |
100-300 pcs/min |
|
Machine Weight |
3500KG |
|
Machine dimensions |
6000*1800*1800MM |
