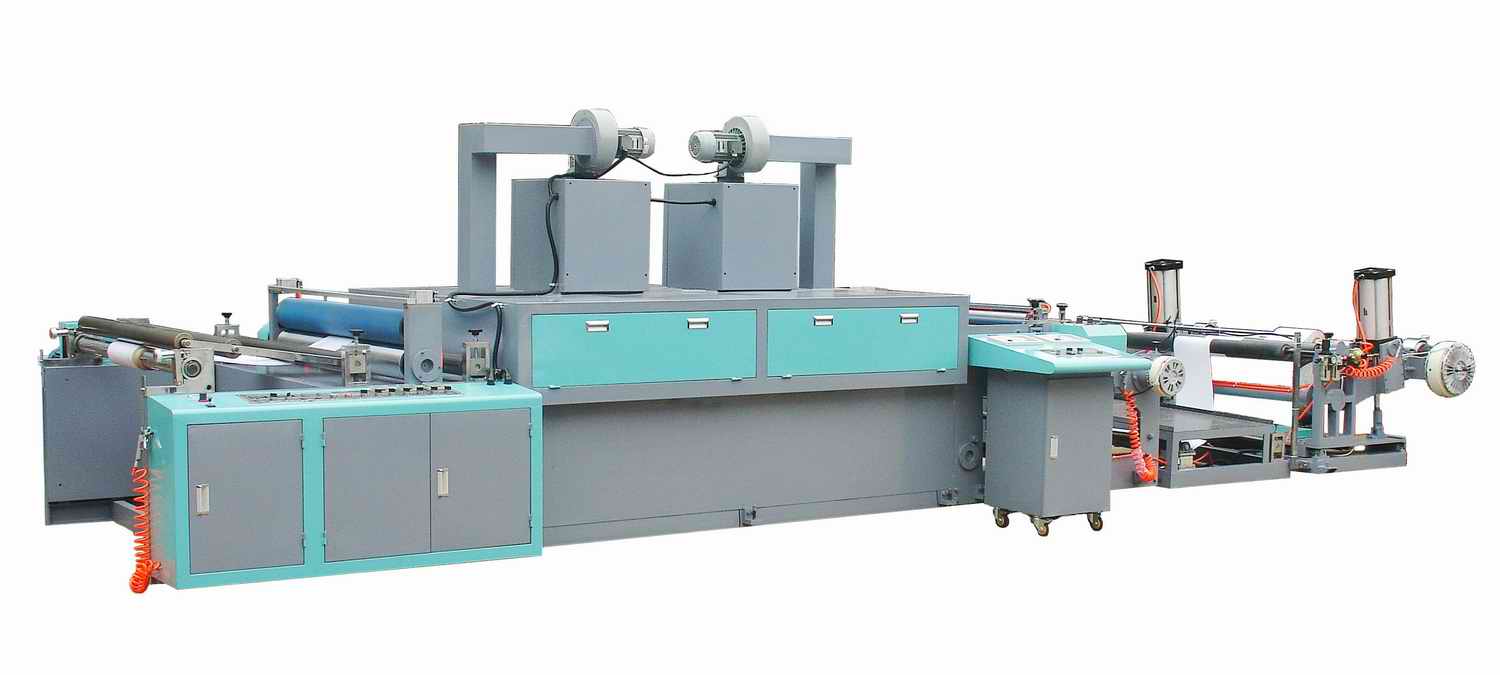

The paper plastic laminating machine is suitable to laminate various kinds of paper-plastic materials for cigarettes, drinks, fruits and many other applications. It has rubber roller to laminate by gluing, the style of horizontal rewinding has easy operation.

The paper plastic laminating machine has automatic materials loading by cylinder with magnetic powder tension control. It uses pneumatic shaft to unwind and rewind easily.

The paper plastic laminating machine has frequency converter timer and constant temperature device for oven.

Technical Data of Paper Plastic Laminating Machine

Model	SFJ-800	SFJ-1000
Max unwind width	800 mm	1000 mm
Max unwind diameter	Φ1400 mm	Φ1400 mm
Max laminating diameter	Φ1200 mm	Φ1200 mm
Speed	10-80 m/min	10-80 m/min
Suitable power supply	380 V/50 HZ	380 V/50 HZ
Weight (approx)	2200 Kg	2400 Kg
Overall dimension L × W × H (mm)	6500 × 1000 × 1700	6500 × 1200 × 1700
