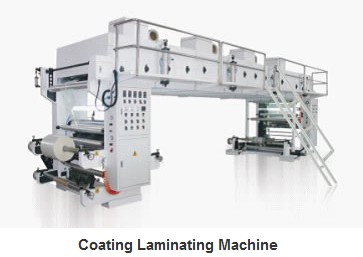

The coating laminating machine has high-intensity cast iron wallboard, laminating rolls are installed and fixed in this wallboard directly. It has magnetic powder brake for unwinding with auto tension controller and auto error-correction system. Its cover can be opened by pneumatic system with shelter porch.
The coating laminating machine has anilox rolls with air pressure scraper, coating and laminating rollers are pressed by pneumatic system with adjustable pressure according to each case. It has two sets of imported frequency conversion timers for main motor that can be controlled synchronically.
Technical Data of Coating Laminating MachineModel | GF- 800A | GF-1000A | GF-1200A |
Max material width | 800 mm | 1000 mm | 1200 mm |
Max unwind and rewind diameter | Ф≤ 1000 mm | Ф≤ 1000 mm | Ф≤ 1000 mm |
Max oven temperature | 120 ℃ | 120 ℃ | 120 ℃ |
Speed of lamination | 10-120 m/min | 10-120 m/min | 10-120 m/min |
Layers of lamination | 2 layers | 2 layers | 2 layers |
Mechanical speed | 130 m/min | 130 m/min | 130 m/min |
Total power | 50 Kw | 55 Kw | 60 Kw |
Overall dimension L × W × H (mm) | 11000 × 2600 × 2700 | 11000 × 2800 × 2700 | 11000 × 2900 × 2700 |
Weight (approx) | 4000 Kg | 4500 Kg | 5500 Kg |
The coating laminating machine has an air type cover for its 10 meter oven with active guide roller inside and five independent sections with constant hot air drying system. It has auto tension at the exit of the oven.
The coating laminating machine has outer heating by oil and circulation constant temperature auto control with pneumatic system heat compound and control emission device. The rewinding is operated by motor with steady tension, the coating and laminating motor can be adjusted by frequency conversion.
And finally, the coating laminating machine has three-roller style for coating and laminating to enable equal pressure for rubber roller to avoid distortion and ensures optimal performance to the whole process.
