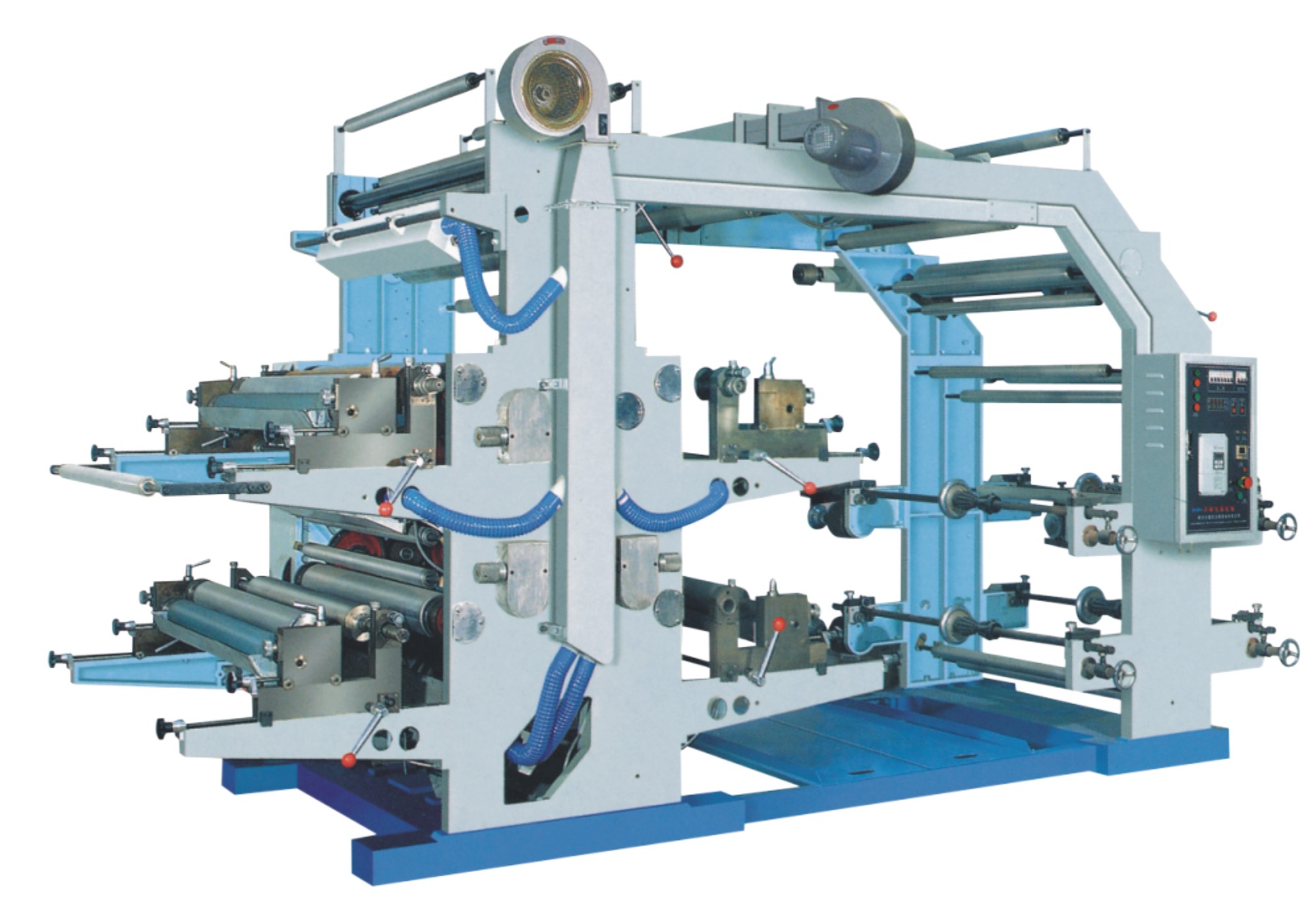

The flexo printing machine has easy operation with flexible starting, it has color corrector and its meter counter can set printing quantity according to specific requirements. It will stop automatically or when material runs out.
The flexo printing machine has manually function to lift and lower the printing plate cylinder, it will automatically stir the printing ink after lifting. The printing ink is spread by a knurled cylinder with ink color. It has reliable drying system coordinated with high-speed rotation.
The flexo printing machine has 360º continuous and adjustable longitudinal register device. It also has an imported motor speed frequency control, suitable for different printing speeds. There are inching/stopping buttons on the plate roller base and a material rolling rack.
Main Technical Parameters of Flexo Printing MachineModel | GWTY600/ | GWTY1000/ |
Max material width | 600 mm | 1000 mm |
Max printing width | 560 mm | 960 mm |
Printed product length range | 191-914 mm | 191-914 mm |
Max material diameter | ¢ 450 mm | ¢ 450 mm |
Speed | 5-50 m/min | 5-50 m/min |
Thickness of plates (with two-side glue paper) | 2.38 mm | 2.38 mm |
Total power | 10.87 Kw | 12 Kw |
Weight (approx) | 3000 Kg | 3800 Kg |
Overall dimension L × W × H (mm) | 4200 × 16000 × 2400 | 4200 × 2000 × 2400 |
