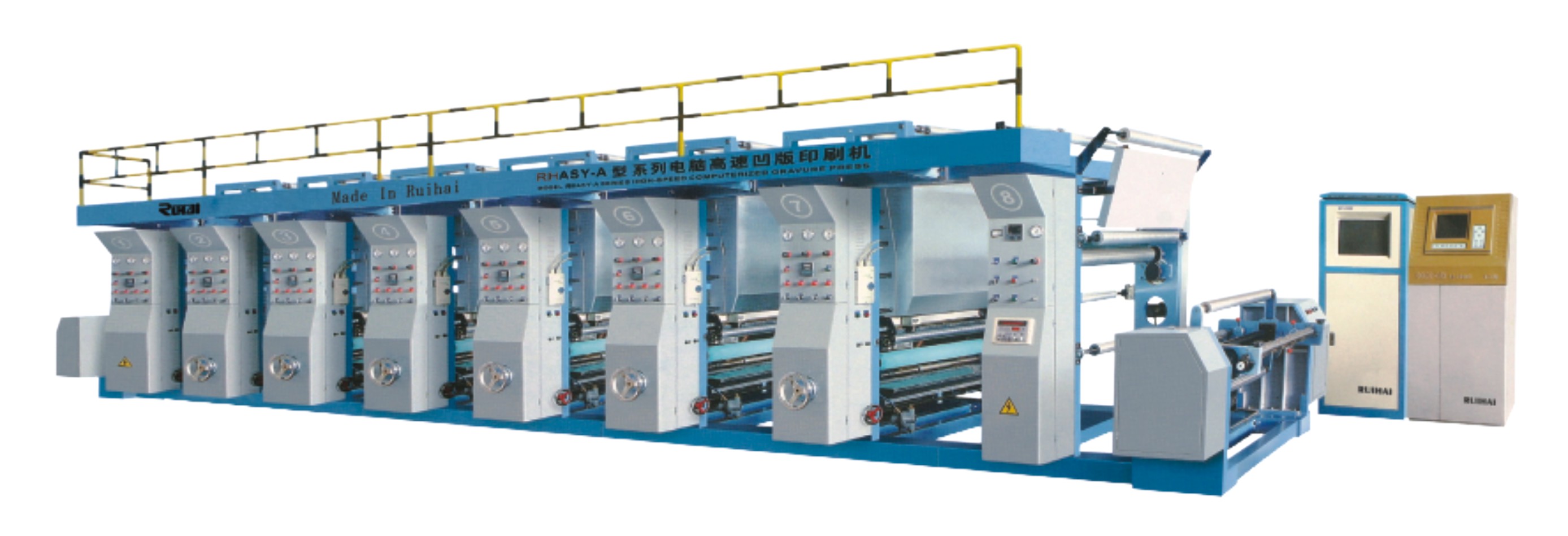

ASY-A Model High speed Rotogravure Printing Machine

ENGLISH

	Name: ASY-A Model High speed Rotogravure Printing Machine Model:

Product Description:

The gravure printing machine is suitable for multi-color once-through continuous printing for roll films, it has excellent printing performance for BOPP, PET, PVC, PE, aluminum foil and paper and other materials.

Every control module of the automatic color register system of the gravure printing machine is set with microprocessor and corrects any deviation of color in a quickly and accurately way. It has frequency control of motor speed and full-automatic tension controller with magnetic powder brake to release tension.

The rolling system of the gravure printing machine has full-automatic constant tension and traction coordinated with torque DC motor, double-station automatic turn over and constantly replaces material without stopping. It has a closed oven and independent heating system.

Technical Data of Gravure Printing Machine

Model	ASY-A1000
Effective printing width	1000 mm
Max base material width	1050 mm
Max printing speed	100-120 m/min
Max mechanical speed	150 m/min
Max unwind /rewind diameter	Φ600 mm
Inside raw material diameter	Φ76 mm
Diameter plate roller printing	Φ120-Φ300 mm
Computer registration accuracy	±0.15 mm (whole machine)
Tension control range	0-25 kg/Full width
Oven heating power	72 Kw
Total power	85 Kw
Weight	13000 Kg
Overall dimension L × W × H (mm)	12400 × 2900 × 2550

Material Technical Parameters for Gravure Printing Machine

Polyethylene	40-75 μ m
Polypropylene film OPP/BOPP/CPP	15-60 μ m
PVC	25-65 μ m
Cellophane Paper	20-30 μ m
Polyester	12-60 μ m
Nylon Film	15-60 μ m
Paper	30-80g/m 2

The gravure printing machine operates with pneumatic pressing system and pneumatic ink-scraping system and automatic ink circulation system is provided upon request. Air shaft is used for unwinding and rewinding shaft providing convenient assemble and disassemble possibilities.

The gravure printing machine has a display for press line and length. Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability. It has pneumatic back pressure shifting blade. It is able to choose different computer flashed boundary and stationary checking figure.
