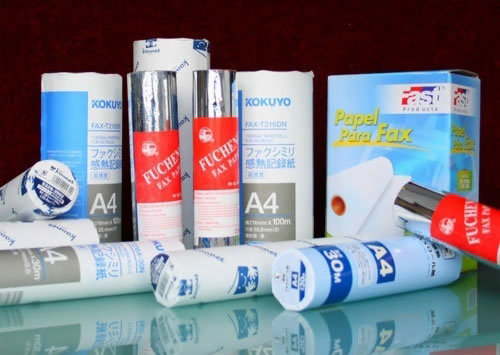

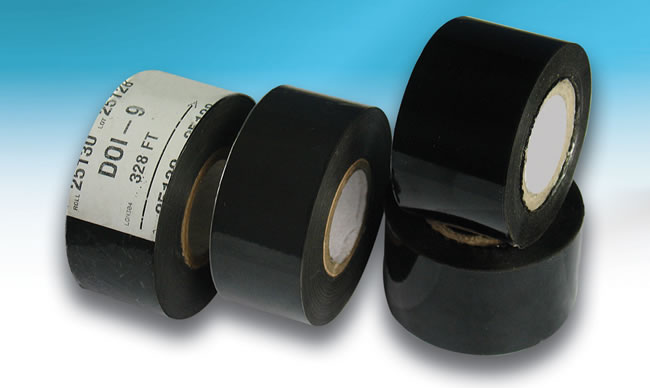

The fax paper slitting rewinding machine is suitable to slit fax paper with different specifications, bill paper, film, self-adhesive trademark or other types of paper with thickness ≤150 gsm.

The fax paper slitting rewinding machine has easy operation and high-precision to rewind trimly. With frequency converter timing device, photoelectric error-correction device, meter/count display as well as auto stop working. The fax paper slitting rewinding machine has the advanced equipment for slitting needs in the domestic and overseas market.



Technical Data of Fax Paper Slitting Rewinding Machine

Model	CZFQ-700	CZFQ-900	CZFQ-1100
Max unwinding diameter	￠600 mm	￠600 mm	￠600 mm
Max slitting width	700 mm	900 mm	1100 mm
Max rewinding diameter	￠100 mm	￠100 mm	￠100 mm
Speed	12-120 m/min	12-120 m/min	12-120 m/min
Total power	3 Kw	3 Kw	3 Kw
Weight	1000 Kg	1000 Kg	1000 Kg
Overall dimension L× W × H (mm)	1800 × 1700 × 1000	1800 × 1900 × 1000	1800 × 2100 × 1000
