Slitting Material :
            Aluminum Foil                                                   Film ,PVC                                             Kinds of  Paper                               Cutting Kinves can be roud or vetical type

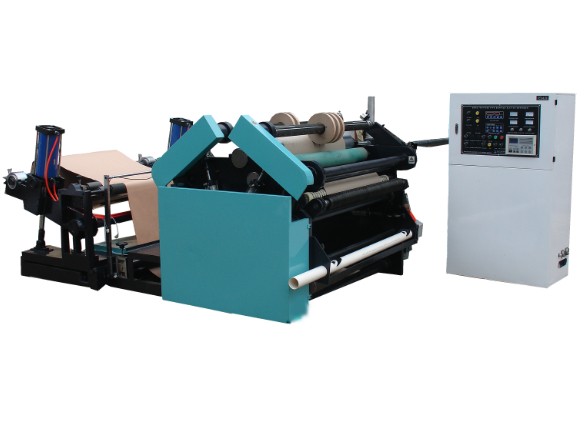

The aluminum foil slitting rewinding machine is used to slit and rewind various large rolling materials such as paper between 10g/㎡and 300g/㎡, cellophane or bill paper, OPP, PET, FILM, AL, copper foil and others

The aluminum foil slitting rewinding machine has photoelectric automatic error adjustment system for unwinding, atypical materials will be easy to slit. The aluminum foil slitting rewinding machine is set with automatic waste film blowing device by circle blade and automatic input material.

The aluminum foil slitting rewinding machine uses automatic constant tension and central surface reeling. It has frequency converter timing to keep speedup and stable operation, also with automatic metering and alarm. The aluminum foil slitting rewinding machine adopts A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

Technical Data of Aluminum Foil Slitting Rewinding Machine

Model	BDFQ-900D	BDFQ-1100D	BDFQ-1300D
Max unwinding width	900 mm	1100 mm	1300 mm
Max unwinding diameter	￠1400 mm	￠1400 mm	￠1400 mm
Min slitting width	5 mm	5 mm	5 mm
Max rewinding diameter	￠600 mm	￠600 mm	￠600 mm
Speed	10- 350 m/min	10- 350 m/min	10- 350 m/min
Precision	± 0.2 mm	± 0.2 mm	± 0.2 mm
Total power	5.2 Kw	5.8 Kw	5.8 Kw
Suitable power supply	380 v/50 Hz	380 v/50 Hz	380 v/50 Hz
Weight (approx)	1400 Kg	1600 Kg	1600 Kg
Overall dimension L × W × H (mm)	3800 × 1500 × 1500	3800 × 1700 × 2200	3800 × 1900 × 1500
