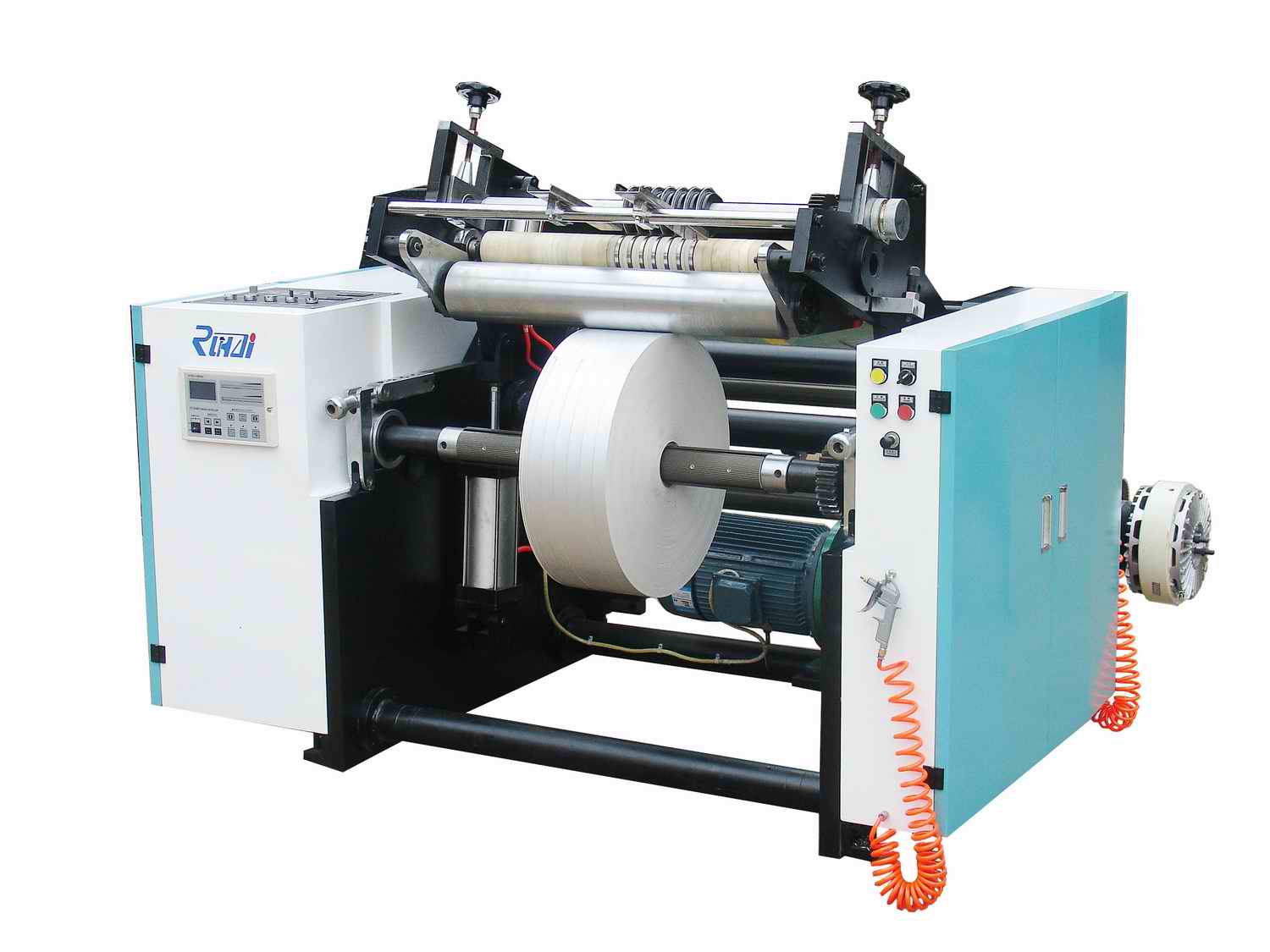

WZFQ-E Model computer control slitting rewinder
Product Description:
The PET film slitting rewinding machine is used to slit and rewind various large rolling materials such as paper between 300g/㎡and 500g/㎡, cellophane and paper, PVC, Al, foil and others.
The PET film slitting rewinding machine uses constant tension and surface reeling. It has frequency converter timing to keep speedup and stable operation, also with automatic metering and alarm. The PET film slitting rewinding machine adopts single shaft structure for rewinding, easy for loading and unloading.
The PET film slitting rewinding machine has photoelectric automatic error adjustment system for unwinding, thus atypical materials will be easy to slit. The PET film slitting rewinding machine is set with automatic waste film blowing device by circle blade and automatic input material with air shaft 3.
Technical Data of PET Film Slitting Rewinding MachineModel | WZFQ- 700 E | WZFQ-1100 E | WZFQ-1300 E |
Max unwinding width * | 700 mm | 1100 mm | 1300 mm |
Max unwinding diameter | ¢600 mm | ¢600 mm | ¢600 mm |
Min slitting width | 5 mm | 5 mm | 5 mm |
Max rewinding diameter | ¢600 mm | ¢600 mm | ¢600 mm |
Speed | 10-160 m/min | 10-160 m/min | 10-160 m/min |
Precision | ± 0.2 mm | ± 0.2 mm | ± 0.2 mm |
Total power | 7 Kw | 8 Kw | 10 Kw |
Suitable power supply | 380 v/50 Hz | 380 v/50 Hz | 380 v/50 Hz |
Weight (approx) | 2100 Kg | 2300 Kg | 2600 Kg |
Overall dimension L x W x H (mm) | 1820× 1200 × 1120 | 1820× 1600 × 1120 | 1820× 1800 × 1120 |
* Other unwinding width upon request
