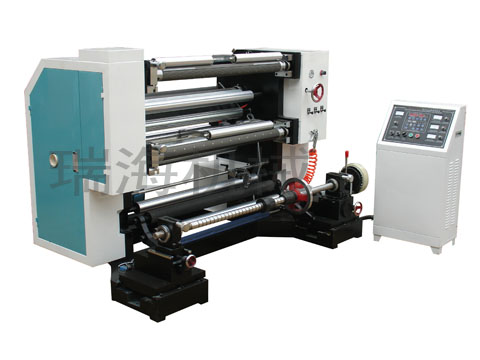

Name: LFQ-B Model computer control slitting rewinder Model:
|
 |
This BOPP film slitting rewinding machine is used to slit and rewind various large rolling materials such as paper between 20g/m2 and 300g/m2 cellophane and bill paper, double-face adhesive tape, PVC, weave material, nonwoven fabric and many others.
The BOPP film slitting rewinding machine has photoelectric automatic error adjustment system for unwinding, atypical materials will be easy to slit. The BOPP film slitting rewinding machine uses three synchronized motors for controlling, automatic taper tension and central surface reeling; it has frequency converter timing to keep speedup and stable operation, also with automatic metering and alarm.
The BOPP film slitting rewinding machine adopts A and B pneumatic shaft structure for rewinding, easy for loading and unloading. The BOPP film slitting rewinding machine is set with automatic waste film blowing device by vertical knife structure and manual input material for unwinding (or pneumatic material loading) with taper cover style pneumatic shaft (3,6).
Technical Data BOPP Film Slitting Rewinding Machine| Model | LFQ-900B | LFQ-1100B | LFQ-1300B |
| Max unwinding width | 900 mm | 1100 mm | 1300 mm |
| Max unwinding diameter | Φ600 mm | Φ600 mm | Φ600 mm |
| Slitting width | 20-900 mm | 20-1100 mm | 20-1300 mm |
| Max rewinding diameter | Φ400 mm | Φ400 mm | Φ400 mm |
| Speed | 5-150 m/min | 5-150 m/min | 5-150 m/min |
| Deviation rectifying error | ±0.5 mm | ±0.5 mm | ±0.5 mm |
| Total power | 3 Kw | 3 Kw | 3 Kw |
| Weight (approx) | 1500 kg | 1800 kg | 2100 kg |
| Overall dimension L x W x H (mm) | 1100 x 1600 x 1400 | 1100 x 1800 x 1400 | 1100 x 2000 x 1400 |
Design and specifications are subject to change without notice.
