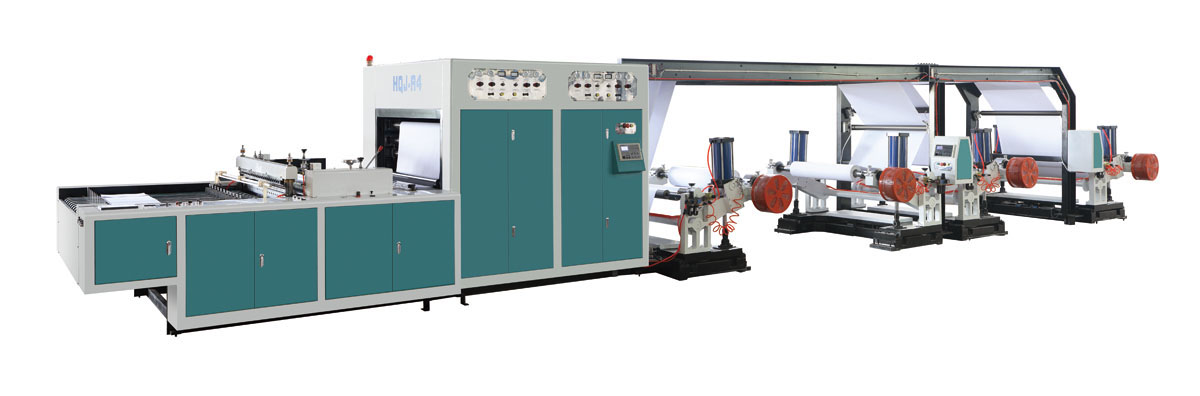

HQJ-A4 Model paper cutting machine with 4 paper roll
Name:
HQJ-A4 Model paper cutting machine with 4 paper roll
Model:
Paper roll to a4 size paper sheet

Product Description:










 Detailed Product Description

A4 paper cutting machine ( A4 paper sheeter )

-Specalist for A4 A3 and A1 etc
-PLC control
-can be 1 ,2, 4 roll

Performance and Characteristics
This A4 paper cutting machine ( A4  paper sheeter )is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated material,etc.
1. It adopts PLC touch screen control, servo motorfor controlling constant-length cutting.
2. It adopts pneumatic,photoelectric sensor for controlling transminssion system,with photo,electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3. This machine has the functions of the frequency converter timing device,auto-matic counting,stop working by alarm magnetic powder tension control,can be cutted vertically,adopt blower to get rid of waste.

Model

HQJ-1100D(1 or 2 or 4 roll)

HQJ-1400D(1 or 2 or 4roll)


Max.width of cutting

1000mm

1400mm


Max diameter of material

Φ1400mm

Φ1400mm


Min.width of cutting

50mm

50mm


Length of cutting

20-400mm

20-400mm


Speed

10-140times/min

10-140times/min


Precision

±0.2mm

±0.2mm


Total Power

9.5kw

11kw


Weight

3500kg

4000kg


Overall dimension(LXWXH)

8600x1500x2000mm

8600x1800x2000mm
