Detailed Product Description

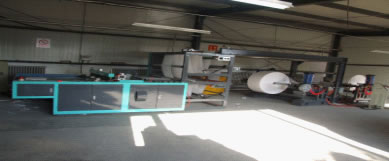

A4 paper cutting machine ( A4 paper sheeter )
-Specalist for A4 A3 and A1 etc
-PLC control
-can be 1 ,2, 4 roll
Performance and Characteristics
This A4 paper cutting machine ( A4 paper sheeter )is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated material,etc.
1. It adopts PLC touch screen control, servo motorfor controlling constant-length cutting.
2. It adopts pneumatic,photoelectric sensor for controlling transminssion system,with photo,electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3. This machine has the functions of the frequency converter timing device,auto-matic counting,stop working by alarm magnetic powder tension control,can be cutted vertically,adopt blower to get rid of waste.
Model |
HQJ-1100D(1 or 2 or 4 roll) |
HQJ-1400D(1 or 2 or 4roll) |
|
1000mm |
1400mm |
|
Φ1400mm |
Φ1400mm |
|
50mm |
50mm |
|
20-400mm |
20-400mm |
|
10-140times/min |
10-140times/min |
|
±0.2mm |
±0.2mm |
|
9.5kw |
11kw |
|
3500kg |
4000kg |
|
8600x1500x2000mm |
8600x1800x2000mm |
