Name: CHM Model high speed rotary cutting machine Model: CHM-1400,CHM-1700,CHM-1900 Model 1,2,4 paper rolls
|
 |
Detailed Product Description
Suitable for cutting :

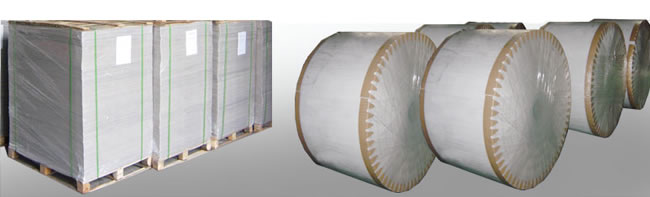

Big rolling packaging materials such as paper, paper board, kraft paper. Culture paper,Printing paper,laser ra paper,alu foil paper laminated paperl, etc. Widely used in paper industry and printing industry.
- High speed rotary paper cutting machine
- can be 2 or 4 rolls paper cutting machine
- paper cutting machine auto stacking
Performance and Characteristics
1. Adopts EU and JAPAN electronic parts, more neatly control with computer and machanical technic
2. Automatic photocell tracing.
3. AC servo motor drive, high speed cutting steadyly
4. Adopts imported precision cutting balde, it is in high precision
5. PLC control with touch screen, easy operation
6. Compair with other models, this machine equipped with auomatic side guiding system,and tension control system, paper delivery well, and cutting exactly
7. paper sheeting machine adopts shaftless shaft loading paper rolls( can be 2 rolls together)
8. It has the functions of easy operation, high precision, good stability, low noise.
Main Technical Parameters
|
Machine Model |
CHM-1400 Model |
|
Maximum width of roll |
1450 mm |
|
Machine power |
15kw |
|
Machine weight |
About 12000kg |
|
Overall size |
9500×3300×1800 mm |
|
Power supply |
380v/220v/50Hz (three phases) can be made according to customers customer |
|
Air pressure |
Max 5.5kg/cm2×5m3/min |
|
Max diameter of roll material |
≤1800 mm. |
|
Material thickness scope |
50g/m2——600g/m2(according to different material) |
|
Cutting Length |
450——1400mm |
|
Cutting Precision |
±0.5mm |
|
Unwind roll inner core |
3 "or 6"(or according to customer) |
|
Cutting speed |
350times /min |
|
Cutting style |
Lower cutter fixing, upper cutter is rotary |
|
Unwinding rolls |
2rolls |
|
Height of stacking |
≤1300mm |
*If need more detailed of the machine or vedios please be free to contact with us.
